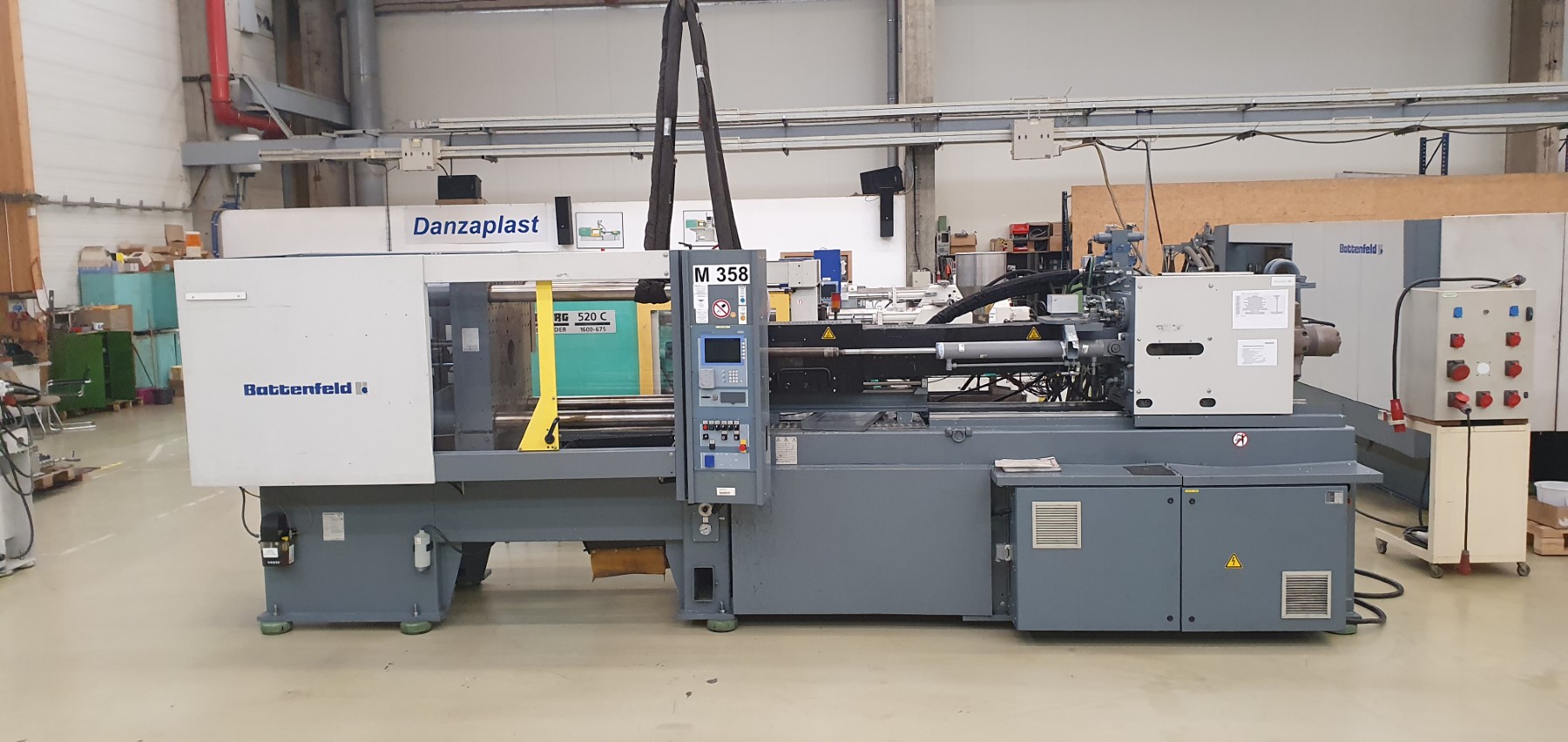

| Battenfeld BA 2700 / 1200 BK U 4000 |
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 2700 / 1200 BK |
| Year: | 1999 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 |
| Screen text: | German |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2.700 kN |
| Size of mould platens (h x v): | 900 mm x 900 mm |
| Distance between tie bars (h x v): | 630 mm x 630 mm |
| Mould opening stroke: | 550 mm |
| Mould height min.: | 250 mm |
| Mould height max.: | 630 mm |
| Max daylight: | 1170 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 67 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 65 mm |
| Ls/D ratio: | 22 |
| Injection pressure: | 1305 bar |
| Stroke volume: | 913 ccm |
| Shot weight, PS: | 830 g |
| Injection stroke: | 275 mm |
| Screw speed: | 233 1/min |
| Plasticising rate max.: | 63 g/s |
| Nozzle pressure: | 140 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 26,6 kW |
| Adjustable barrel heating zones: | 1+5 |
| Pump power | 37 Kw |
| Oil | 425 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 11.900 kg |
| Dimensions ( L x B x H ) | 6.7 x 1.6 x 2.20 m |
| Accessories | |
|---|---|
| - 2 x Core Hydraulic - 2 x Air valve - 8 x Hotrunner controllers - Anti vibration pads - Robot Interface Euromap 12 |
| Additional information | |
|---|---|
|
Video Picture |
|---|
